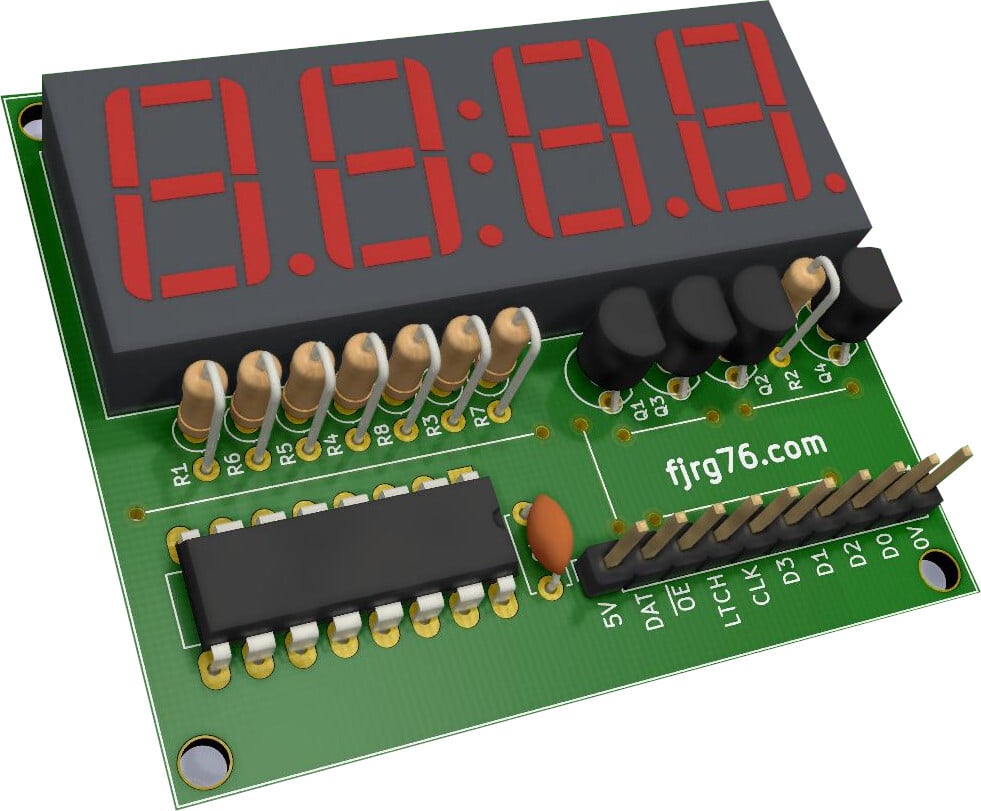

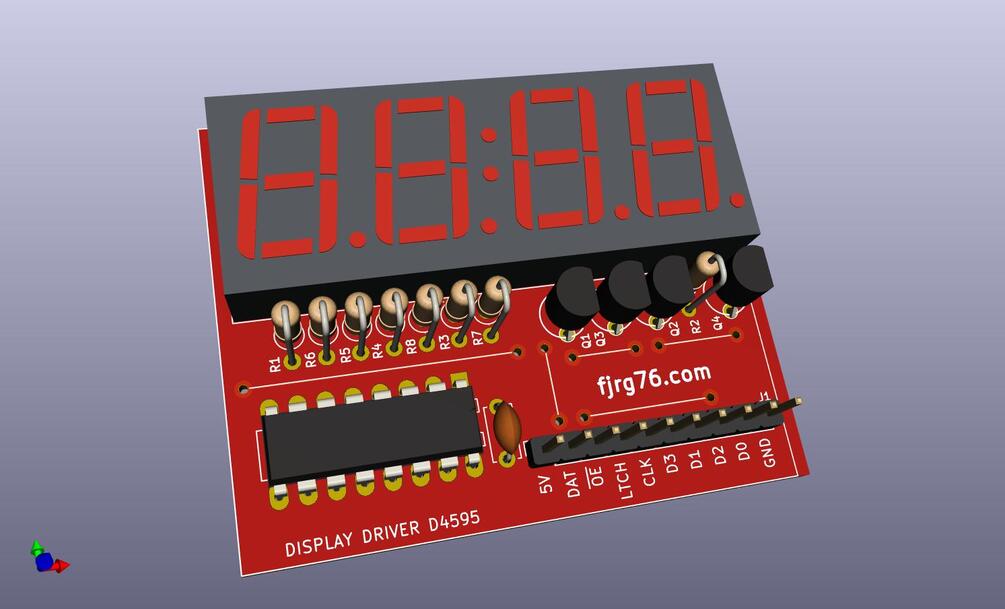

D4595, 7 segment 4 digit LED display module
Tiny Tech, Big Impact: DIY 7-Segment Display Kit for Every Project (source code included!)
A sleek, custom display breathing life into your latest electronic project. Whether it's a fascinating clock counting down the seconds or a dynamic counter tracking revolutions or individuals entering into a building, the possibilities are endless with this DIY 7-Segment Display project!
Make your project count (literally)! This compact PCB packs a punch, letting you build 3 or 4-digit displays for anything from clocks and counters to interactive displays and custom messages. We kept it beginner-friendly, so you can focus on making your project stand out.
Perfect for:
- Arduino Aficionados: Seamless integration with included source code makes your Arduino projects come to life quickly.
- Tech-Savvy Beginners: Friendly design with minimal jumpers and clear instructions, ideal for toner transfer or laminator techniques.
- Project Builders: From clocks and counters to custom indicators and interactive displays, the applications are endless.
No soldering nightmares: We've crafted this kit with ease in mind. Thru-hole and easy-to-get- components, minimal jumpers, and a straightforward layout make assembly a breeze. Just grab your iron and your soldering iron, a touch of DIY spirit, and get ready to light up your world.
Ready to unleash your inner tech wizard? Get your hands on the DIY 7-Segment Display project today and:
- Boast your skills: Share your handiwork and impress your friends with your custom-built circuit.
- Unlock endless possibilities: Dive into the world of electronics, one captivating project at a time.
- Grab your PDF right now! Click the button "I want this" and get your hands on the DIY 7-Segment Display project. Unleash your inner inventor and bring your projects to life..
BONUS:
You can get the basic source code for the Arduino UNO board (and alikes) in my blog HERE so that you start using this project ASAP and almost effortlessly!
After your purchasing you'll get an email with instructions to download it (it may take several minutes). The PDF includes your email stamped on it.
NOTE: This circuit is meant for recreational purposes, and you must not use it in industrial or alike enviroments.

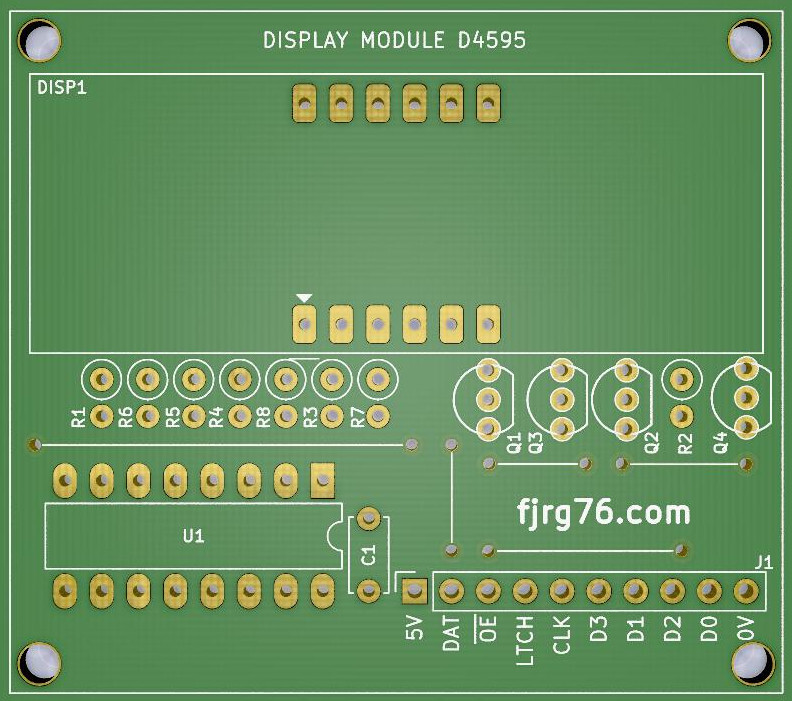

You'll get: schematic, bill of materials, components placing guide, PDFs of: actual PCB with real drills size and small drills size; silkscreen and drawings.
